Views: 0 Author: Site Editor Publish Time: 2026-03-04 Origin: Site
In the world of exterior insulation and finish systems (EIFS) and traditional plastering, the integrity of the reinforcement layer is paramount. Plasterers and contractors have long sought a material that combines high tensile strength with durability against the corrosive nature of cement. This is where alkali-resistant fiberglass mesh for plastering becomes an indispensable component of modern construction.
Cement and lime-based plasters are highly alkaline, with a pH level often exceeding 12. Standard glass fibers, if not treated, will degrade and lose their structural integrity over time when embedded in such an environment. This degradation leads to cracking, delamination, and ultimately, failure of the facade. Alkali-resistant (AR) fiberglass mesh is specifically engineered to withstand this chemical assault, ensuring the longevity and safety of buildings.
This guide provides an in-depth look at the manufacturing process, technical specifications, application methods, and selection criteria for AR fiberglass mesh, serving as a comprehensive resource for architects, contractors, and building material specifiers.
The "alkali-resistance" of fiberglass mesh is not merely a coating; it is a fundamental property derived from its composition and enhanced by its finish.
1.1 Zirconium Dioxide: The Key Ingredient
The primary difference between standard E-glass (electrical glass) and AR-glass is the inclusion of Zirconium Dioxide (ZrO₂). International standards, such as those from ASTM and ISO, often specify a minimum ZrO₂ content (typically 14% to 18%) to classify a mesh as truly alkali-resistant. When embedded in alkaline cement, the zirconium-rich fibers form a protective layer that resists corrosion, maintaining the mesh's tensile strength for decades.
1.2 The Manufacturing Process
Fiber Formation: Molten AR-glass is drawn through platinum bushings to create extremely fine filaments.
Twisting and Weaving: These filaments are twisted into yarns and then woven into a mesh of specific opening sizes (e.g., 4x4mm, 5x5mm, 10x10mm) on high-speed looms.
The Sizing/Coating: This is the most critical step for handling and performance. The woven mesh is impregnated with a thermosetting polymer, typically an acrylic or styrene-acrylic copolymer. This coating serves multiple purposes:
Protection: It locks the fiber intersections, preventing slippage.
Handling: It makes the mesh rigid enough to be easily handled and applied without fraying.
Alkali Barrier: It provides an additional physical barrier against alkali attack, working in synergy with the AR-glass.

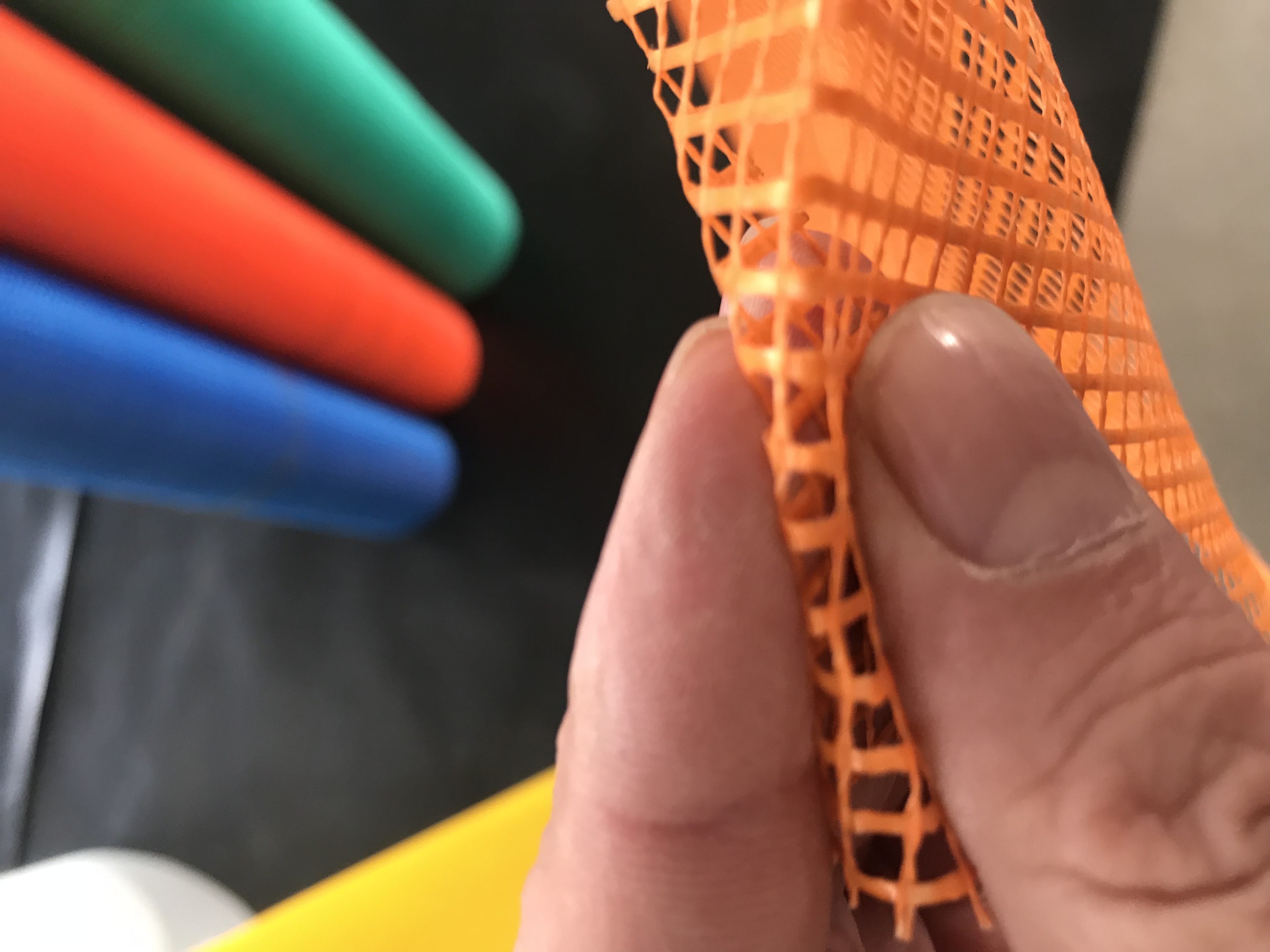

To select the right mesh, one must look beyond the name and understand the data sheet. Here are the key parameters:
2.1 Weight (GSM - Grams per Square Meter)
This is the most common indicator of strength and application.
Lightweight (45-75 GSM): Used for interior applications, reinforcing joints between plasterboards, or in systems requiring minimal impact resistance.
Standard (90-145 GSM): The workhorse for most EIFS and traditional external plastering (cement render). A 145gsm mesh with a 5x5mm opening is an industry standard for base coats.
Heavy-Duty (160 GSM and above): Used for ground-level areas, impact zones, or renovation work on unstable substrates. Often used with a 4x4mm or smaller opening for maximum crack resistance.
2.2 Mesh Opening Size
Small Openings (2x2mm, 4x4mm): Provide better stress distribution and are ideal for thin-coat systems. They prevent the formation of small cracks more effectively.
Standard Openings (5x5mm, 6x6mm): Offer a good balance between mortar penetration and reinforcement. The 5x5mm is the most popular for 3-5mm thick base coats.
Large Openings (10x10mm, 12x12mm): Used for thicker renders or as a mechanical anchor for heavier finishes.
2.3 Tensile Strength and Elongation
This is measured in Newtons per 5cm width (N/5cm) according to standards like ASTM D5034. A high-quality 145gsm mesh should retain a significant percentage of its original tensile strength after accelerated aging tests in an alkaline solution (e.g., 28 days in a 5% NaOH solution). Reputable manufacturers guarantee a retained strength of over 50% (often up to 70-80%) after alkali exposure.
Proper installation is as important as the quality of the mesh itself. Here is a step-by-step guide for applying AR fiberglass mesh in a typical EIFS or cement render system.
Step 1: Substrate Preparation
The wall surface must be clean, sound, and free from dust, oil, or efflorescence. Apply a primer if necessary to ensure a uniform suction rate.
Step 2: Applying the Base Coat
Using a stainless-steel trowel, apply a thin, uniform layer of the polymer-modified base coat adhesive (cement-based) onto the substrate. The thickness should be roughly 2-3mm, slightly more than the thickness of the mesh.
Step 3: Embedding the Mesh
While the base coat is still wet and workable, unroll the alkali-resistant fiberglass mesh for plastering vertically onto the surface. Use a trowel to gently but firmly press the mesh into the adhesive, working from the top down and from the center outwards to eliminate any air bubbles or wrinkles. The mesh should be fully embedded but not visible; it should sit in the middle or outer third of the adhesive layer.
Step 4: Lapping (Overlapping)
Mesh pieces must overlap correctly to maintain continuity. The standard overlap at joints is a minimum of 10cm (4 inches) on vertical seams and side laps. At corners (window and door openings), apply additional diagonal "patch" pieces (approximately 20x30cm) at a 45-degree angle to prevent the 45-degree cracks that are common at these stress points.
Step 5: The Top Coat
After the base coat has dried (usually 24-72 hours, depending on weather), it can be lightly sanded to remove any trowel marks. The decorative finish coat or a secondary render layer is then applied.
Using Non-AR Mesh: The most critical mistake. It guarantees future failure.
Mesh on the Surface: If the mesh is visible or can be felt, it is too high. It provides no structural benefit and will corrode or be damaged.
Insufficient Overlap: Gaps between mesh pieces create lines of weakness where cracks will inevitably form.
Folding the Mesh at Corners: Never cut and fold the mesh around a corner. Always wrap it around (at least 10-15cm) and apply a separate piece to the other side.
For B2B buyers, selecting a supplier is about more than just price.
Request Technical Data Sheets (TDS): Look for documented proof of alkali resistance, not just marketing claims.
Ask for Samples: Physically inspect the weave. Is it uniform? Is the coating evenly applied and not flaking off?
Check for Certifications: Inquire about ISO 9001 quality management and any specific product certifications (e.g., ETA, CE) required in your target market.
Assess Packaging: Professional packaging (e.g., shrink-wrapped rolls, proper labeling) prevents damage during transit and maintains product integrity on-site.
Alkali-resistant fiberglass mesh for plastering is a silent guardian of building facades. Its role in absorbing tensile stresses and preventing cracks is vital for the durability and aesthetics of plastered surfaces. By understanding the science behind its resistance, respecting its technical specifications, and adhering to correct installation practices, construction professionals can ensure that their projects stand the test of time and the elements. Investing in high-quality AR mesh from a reputable manufacturer is not an expense; it is an investment in the building's future performance.
