Installing fiberglass mesh correctly is the difference between a stucco finish that lasts decades and one that cracks within months. This step-by-step guide covers everything you need to know about fiberglass mesh for stucco applications, from selecting the right weight to avoiding common installation mistakes.
Why Fiberglass Mesh is Essential for Stucco
Choosing the Right Fiberglass Mesh Weight
Tools and Materials Needed
Step-by-Step Installation Guide
Common Mistakes to Avoid
Frequently Asked Questions
Fiberglass mesh acts as the reinforcement layer in stucco systems, similar to how rebar reinforces concrete. Its primary functions include:
Crack Prevention: Distributes stress across the surface, preventing localized cracking from thermal expansion and building movement
Structural Integrity: Holds the stucco layers together, especially important in multi-coat applications
Impact Resistance: Provides additional protection against physical damage
Alkali Resistance: Quality AR-glass mesh withstands the high pH environment of cement-based stucco
Professional Tip: Never skip the mesh layer to save costs. The few dollars per square foot you save will cost you thousands in repairs when cracks appear.
Mesh weight (measured in grams per square meter, or gsm) determines strength and application suitability:
| Mesh Weight | Best For | Tensile Strength |
|---|---|---|
| 60-75 gsm | Interior drywall, thin finish coats | Light duty |
| 110-120 gsm | Standard exterior stucco, residential EIFS | Medium duty |
| 145-160 gsm | Heavy-duty stucco, commercial buildings, impact zones | High strength |
| 300+ gsm | Below-grade waterproofing, foundation reinforcement | Extra heavy duty |
For most stucco applications, we recommend 145-160 gsm alkali-resistant fiberglass mesh. This weight provides optimal balance between flexibility and strength.

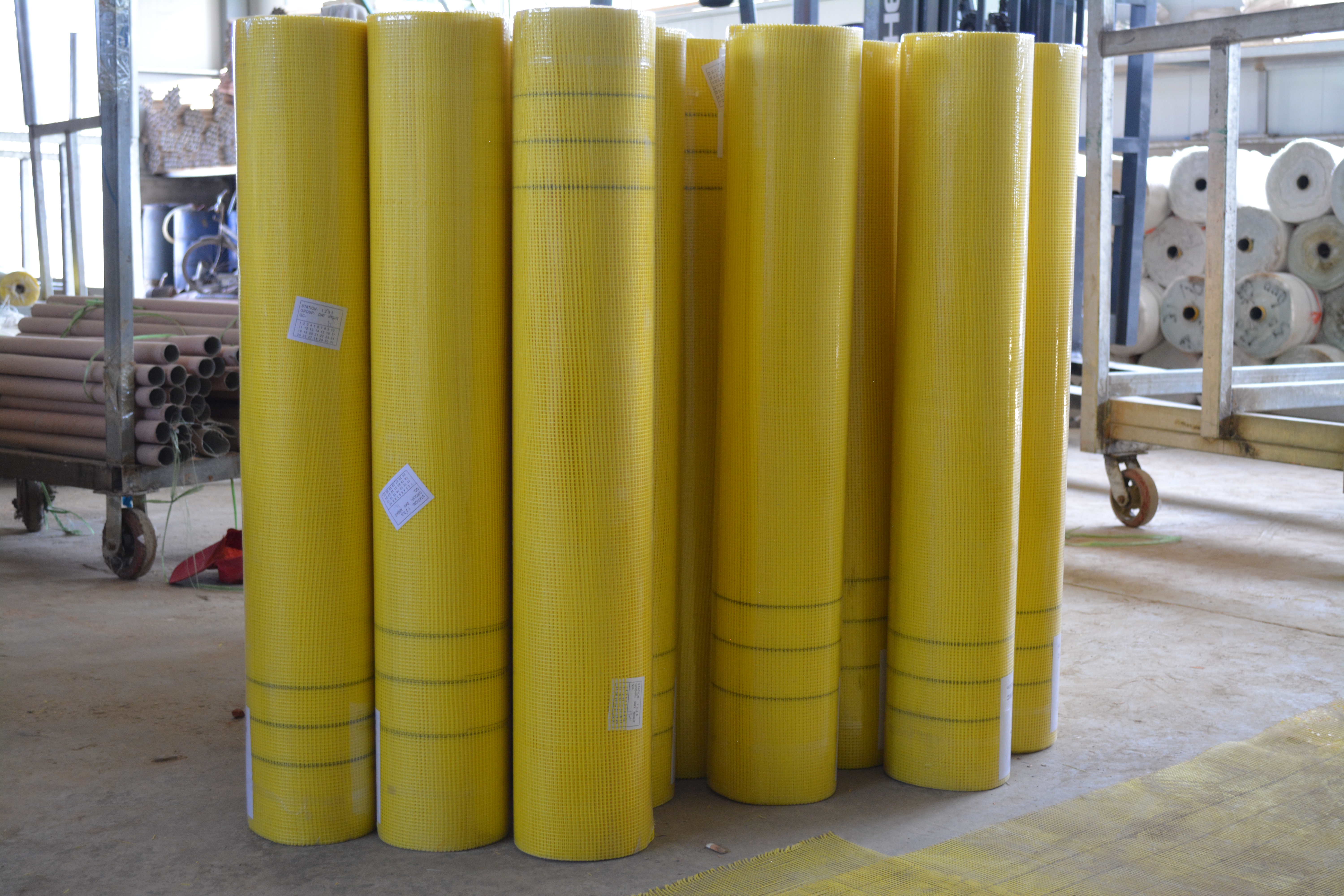

Fiberglass mesh roll (appropriate weight for your application)
Stucco base coat / scratch coat
Corner beads (for outside corners)
Mesh tape (for seams and inside corners)
Utility knife or heavy-duty scissors
Staple gun or masonry nails
Trowel (notched and finishing)
Measuring tape
Straight edge or level
Safety gloves and eye protection
Ensure the substrate is clean, dry, and structurally sound. Remove any loose material, oil, or debris. For concrete or masonry surfaces, repair any major cracks or holes before proceeding.
Apply a 3/8-inch (10mm) layer of stucco base coat to the prepared surface. Use a notched trowel to create horizontal grooves—this improves mechanical bonding with the mesh.
Starting from the top of the wall, unroll the fiberglass mesh horizontally. Allow the mesh to relax for a few minutes if it has curl memory from being rolled.
Pro Tip: Install mesh in horizontal strips from top to bottom. This prevents debris from collecting on exposed mesh edges.
Press the mesh firmly into the wet scratch coat using a trowel or float. Work from the center outward to eliminate air pockets and wrinkles. The mesh should be fully embedded but still visible through the base coat.
Adjacent mesh strips should overlap by at least 2.5 inches (6-7 cm). For corners and high-stress areas, increase overlap to 4 inches (10 cm). Never butt edges together—this creates weak points.
For outside corners, use pre-formed corner beads with integrated fiberglass mesh. For inside corners, fold mesh tape and press into both surfaces. Additional diagonal mesh pieces (6"x6") at door and window corners prevent stress cracking.
Once the scratch coat with embedded mesh has cured (typically 24-48 hours), apply the brown coat. This layer should be approximately 3/8-inch thick and leveled smooth.
After the brown coat cures (5-7 days), apply your chosen finish coat. This can be textured, smooth, or decorative depending on your aesthetic requirements.
Problem: Butting mesh edges or minimal overlap creates weak seams that crack.
Solution: Always overlap by minimum 2.5 inches, 4 inches in high-stress areas.
Problem: Exposed mesh fibers can wick moisture and cause delamination.
Solution: Press mesh completely into wet base coat—should be visible but not exposed.
Problem: Using lightweight mesh (60 gsm) for exterior stucco leads to premature failure.
Solution: Use 145-160 gsm for exterior, 110-120 gsm minimum for any stucco application.
Problem: Corners are high-stress points that crack first without proper reinforcement.
Solution: Always use corner beads on outside corners, mesh tape on inside corners.
Problem: Moisture trapped behind stucco causes blistering and mold growth.
Solution: Ensure substrate moisture content is below 15% before applying any coats.
A: Yes, but the existing surface must be sound. Remove all loose material, repair cracks, and apply a bonding agent before installing new mesh and base coat.
A: Quality alkali-resistant fiberglass mesh can last 50+ years when properly installed and protected. The mesh itself typically outlasts the finish coat.
A: Fiberglass mesh is lighter, easier to install, and doesn't corrode. Metal lath provides higher structural strength but requires more labor and can rust over time. For most residential stucco, fiberglass mesh is sufficient.
A: Absolutely. In fact, fiberglass mesh is the standard reinforcement for EIFS. Use 145-160 gsm for the base layer, with additional reinforcement at impact-prone areas.
A: Yes. For foundation waterproofing and below-grade use, choose heavy-duty mesh (300+ gsm) specifically rated for waterproofing membranes.
Proper fiberglass mesh installation is the foundation of a durable, crack-resistant stucco system. By choosing the right mesh weight, following proper installation techniques, and avoiding common mistakes, you can ensure your stucco finish lasts for decades.
Need quality fiberglass mesh for your stucco project? Browse our selection of alkali-resistant fiberglass mesh rolls, available in weights from 60 gsm to 300+ gsm for all stucco and EIFS applications.
